PES Project Profile

Q505 Hillcrest High School

Queens, New York

Project Details

  • Project Cost: $455,000
  • Project Awarded: February 2011
  • Design Completed: June 2011
  • Construction Completed: July 2013

  • Scope of Services

    • Mechanical / HVAC Design
    Electric Design
    • Architectural Design
    • Construction Administration

    Client Reference

    Mr. Vergiliu Vlad, P.E.
    Design Project Manager
    NYC School Construction Authority
    A&E Design Consultant Management
    Tel: 718-472-8702

Air Conditioning Retrofit

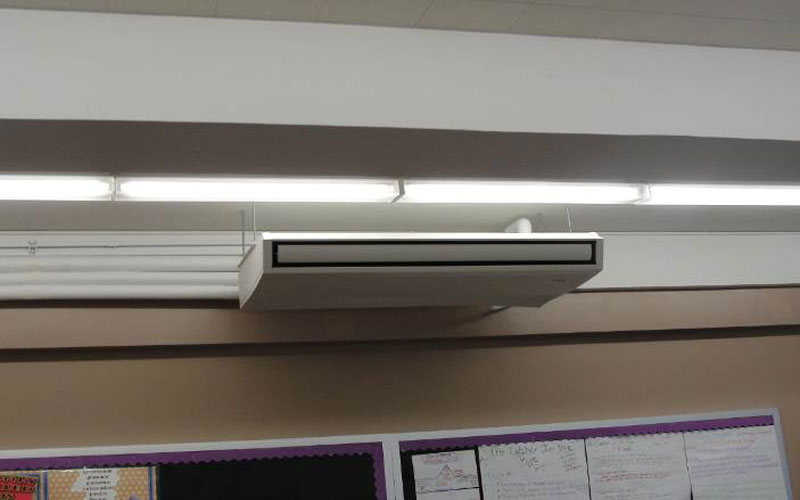

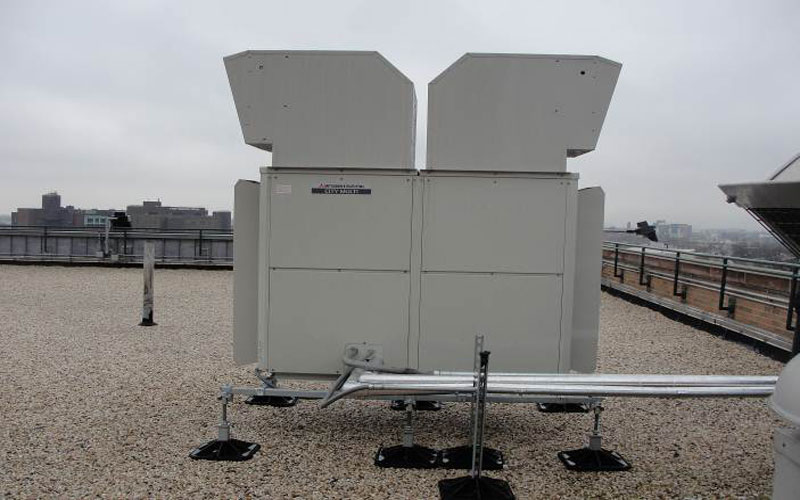

Princeton Engineering Services provided design and construction administration services as the MEP Prime Consultant for Air Conditioning upgrades at Q505 Hillcrest High School in Queens, New York. The scope of work included new split system air conditioning units serving ten (10) classrooms, with provisions for future expansion of the system. Appropriate cooling was achieved via two roof-mounted condensing units connected to multiple indoor evaporator units. Refrigerant piping interconnected the condensing unit and classroom evaporator units without penetrating the existing warranted roof. The Automatic Temperature Control System allowed for central control by the Building Engineer, as well as limited control by the individual classroom instructors. The new evaporator units, associated condensate pumps and roof-mounted condensing units were powered from new electrical power panelboards and feeders from the Main Switchboard in the cellar Electrical Room.

Mechanical, HVAC & Architectural Design, Construction Administration
